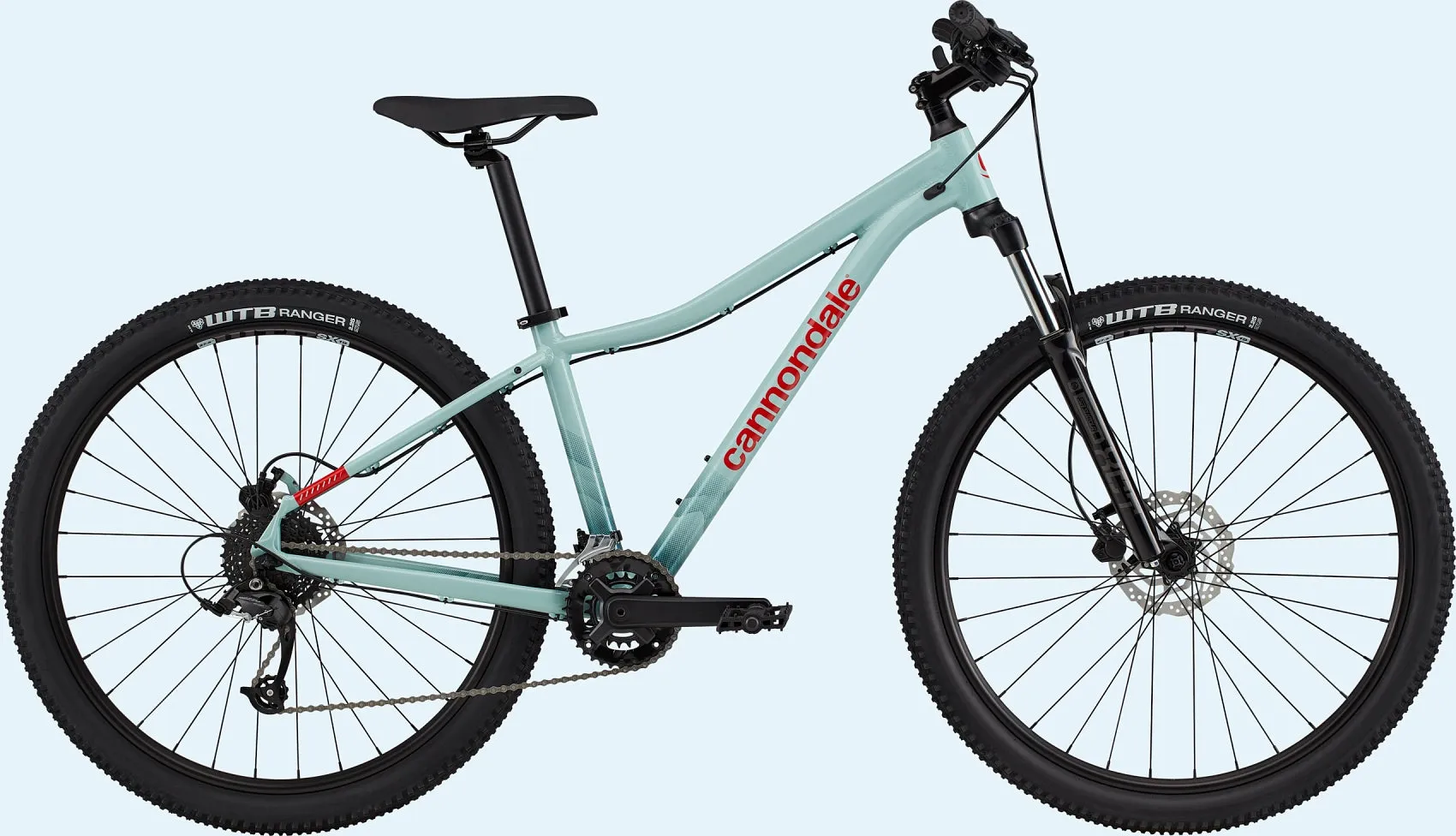

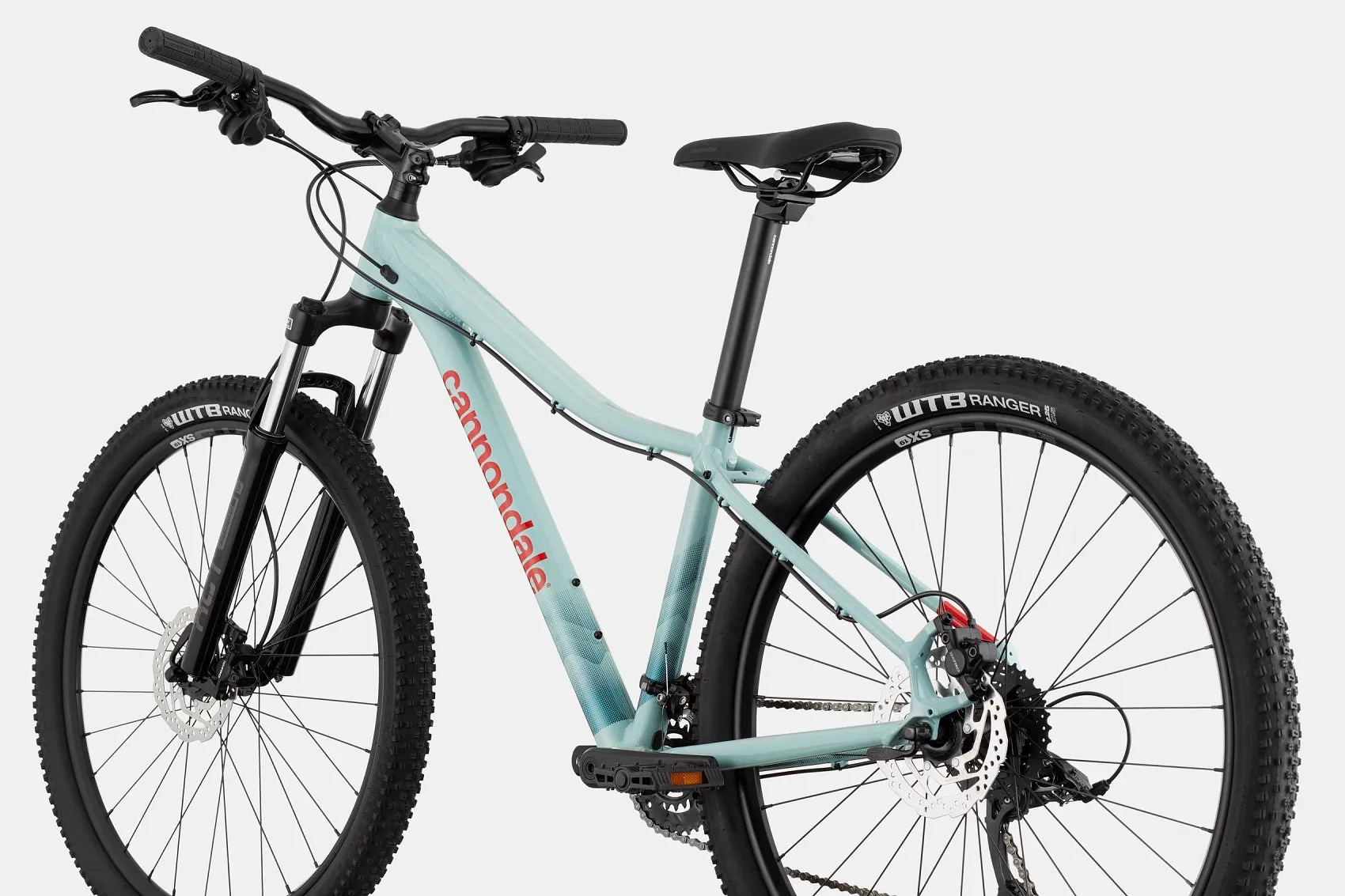

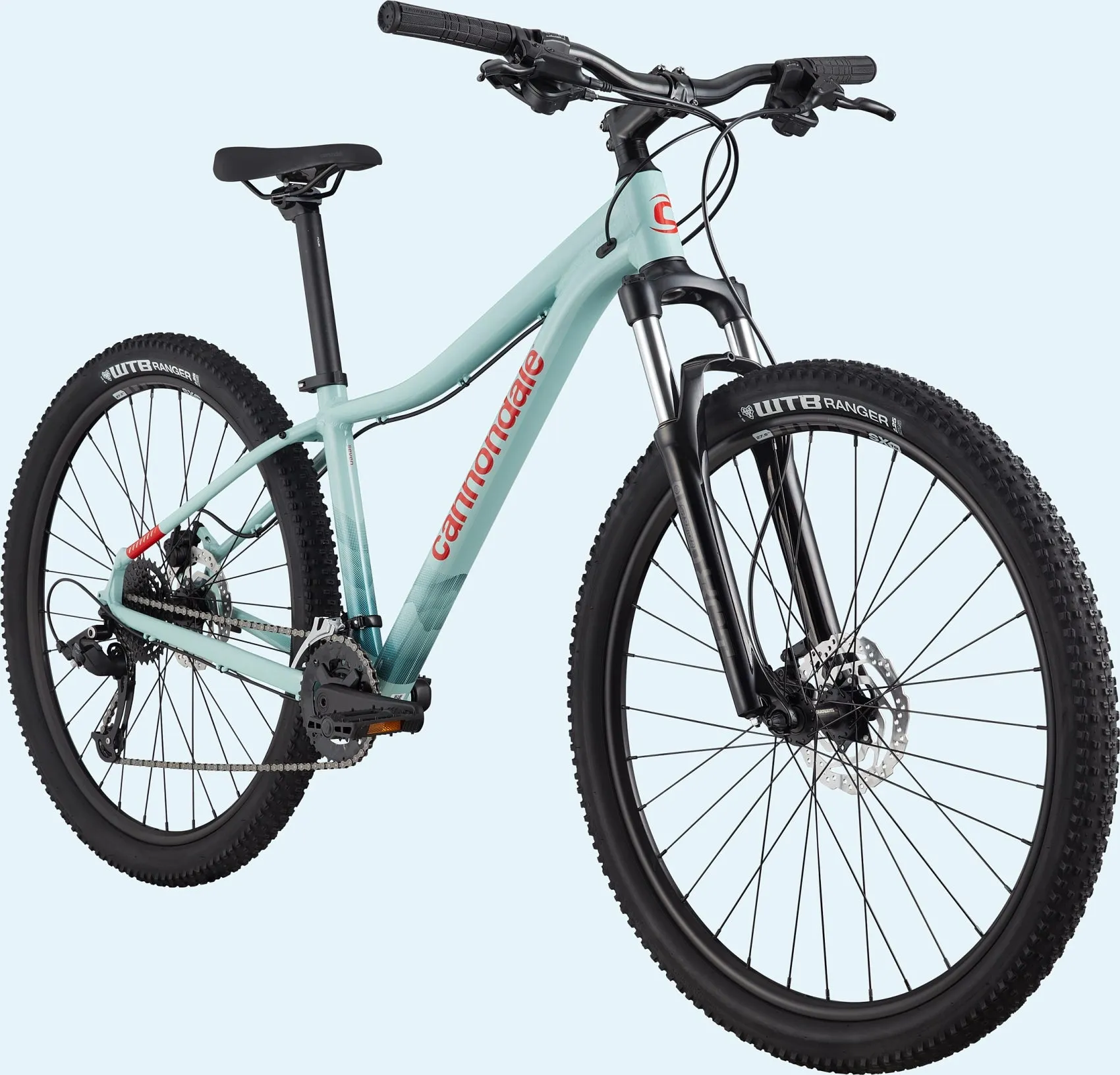

Trail 7 Women's Bike

“These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.”

Level Up.

A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.

Where it thrives

Low-impact trails, gravel roads, leisurely ride

What it's built for

Handling, durability

Highlights

Light and durable SmartForm C3 Alloy frame
SR Suntour XCT suspension fork, 100mm travel
microSHIFT 8-speed drivetrain w/double chainring crank / Shimano hydraulic disc brakes

Specs

DETAILS

Platform
Model Name
Trail Women's 7
Model Code
C26501F

FRAMESET

Frame
SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73
Fork
SR Suntour XCT DS, 100mm, coil, 42mm offset (27.5") 46mm offset (29")
Headset
Semi-Integrated, 1-1/8"

DRIVETRAIN

Rear Derailleur

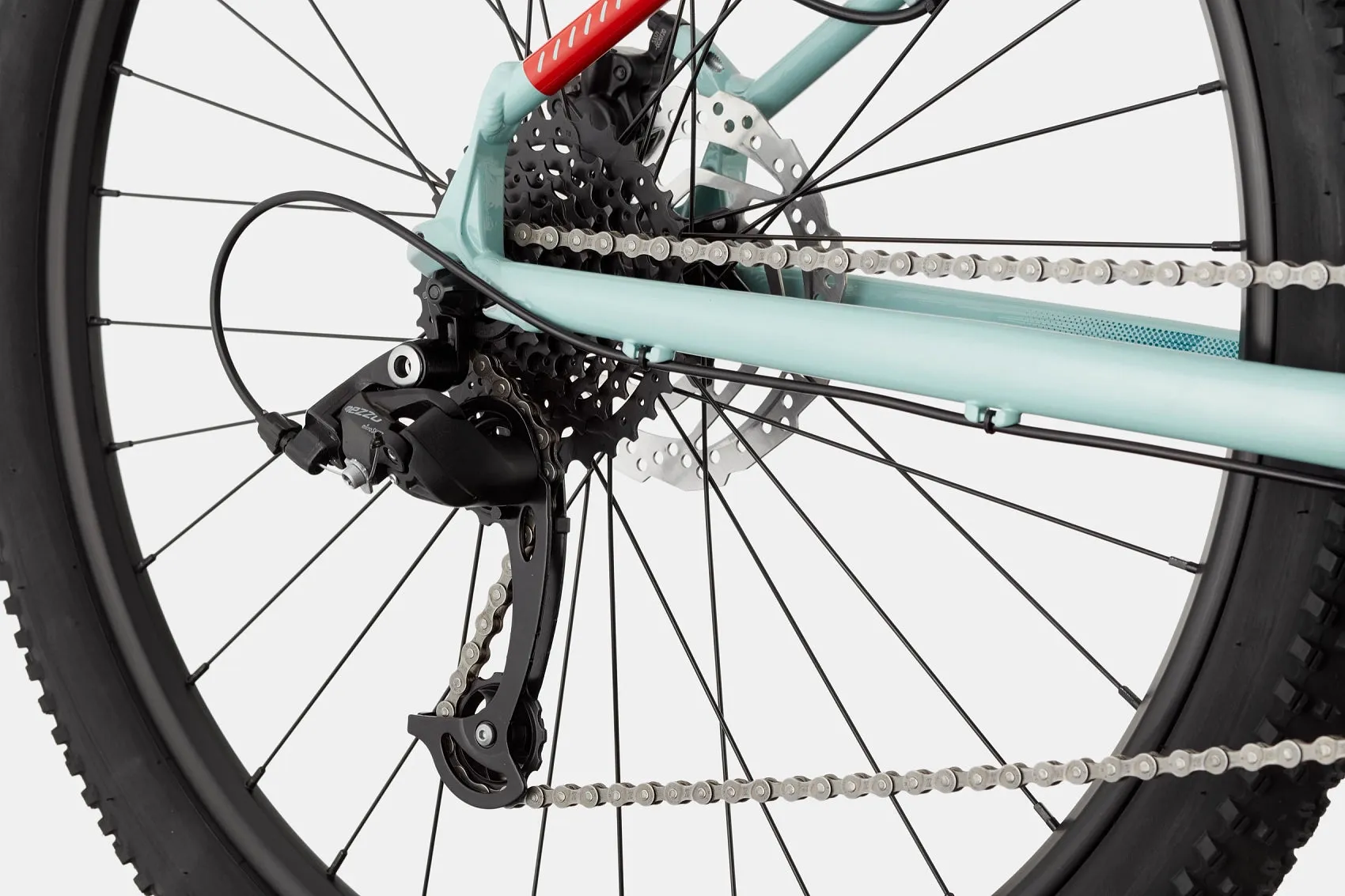

microSHIFT M36L
Front Derailleur
microSHIFT Dual Pull Compact, Band Clamp
Shifters
microSHIFT, 8-speed
Chain
KMC Z8.1, 8-speed
Crank
Prowheel, 36/22
Rear Cogs
Sunrace, 11-34, 8-speed
Bottom Bracket
Sealed cartridge bearing, square taper

BRAKES

Brakes

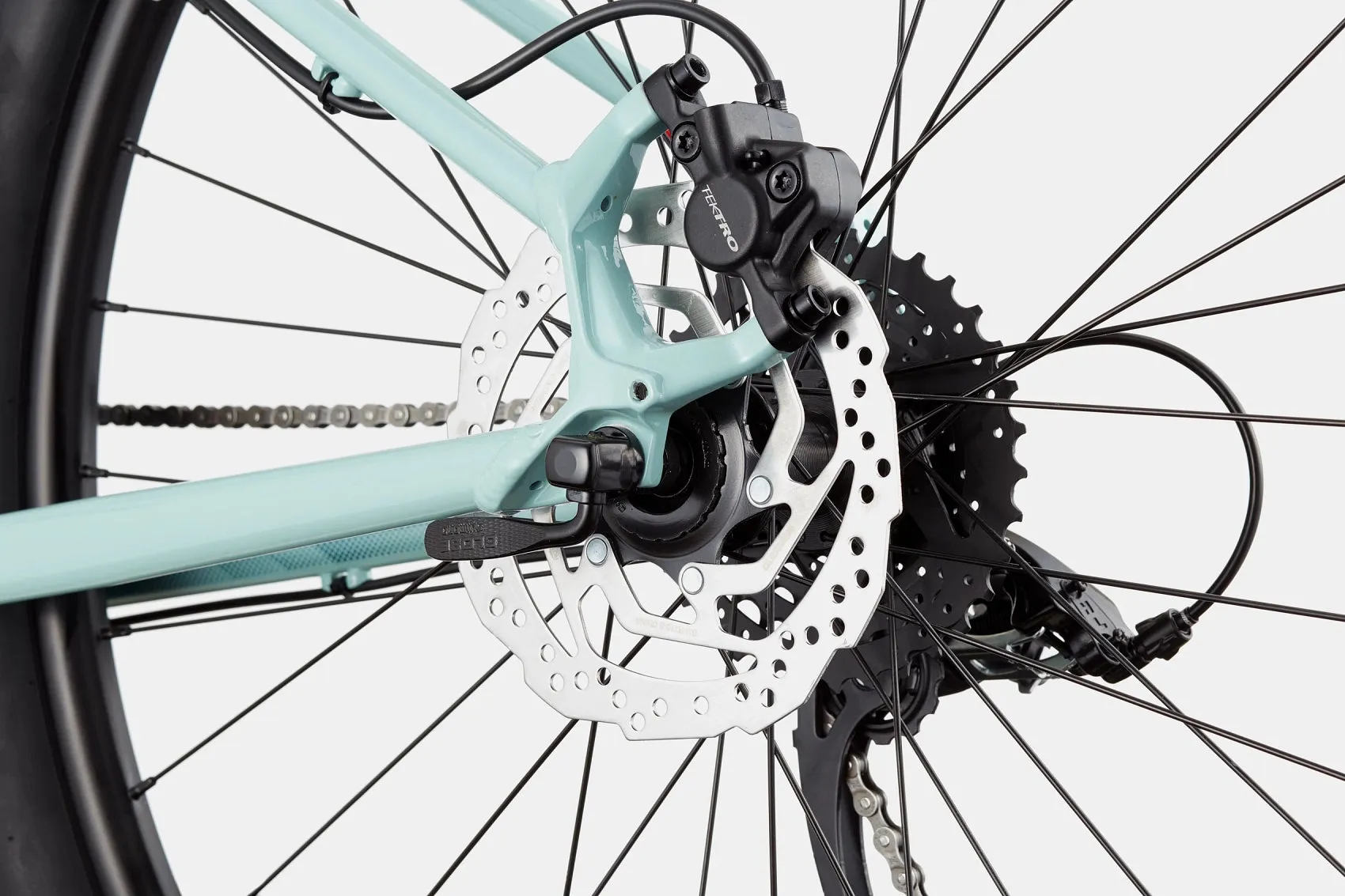

Tektro M275 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc

WHEELS

Front Hub
Shimano HBTX 505
Rear Hub
Shimano FH-TX505
Brake Type
Disc
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tire Size
2.25
Wheel Size
29
Tires
WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound
Front Tire
WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound
Rear Tire
WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

COMPONENTS

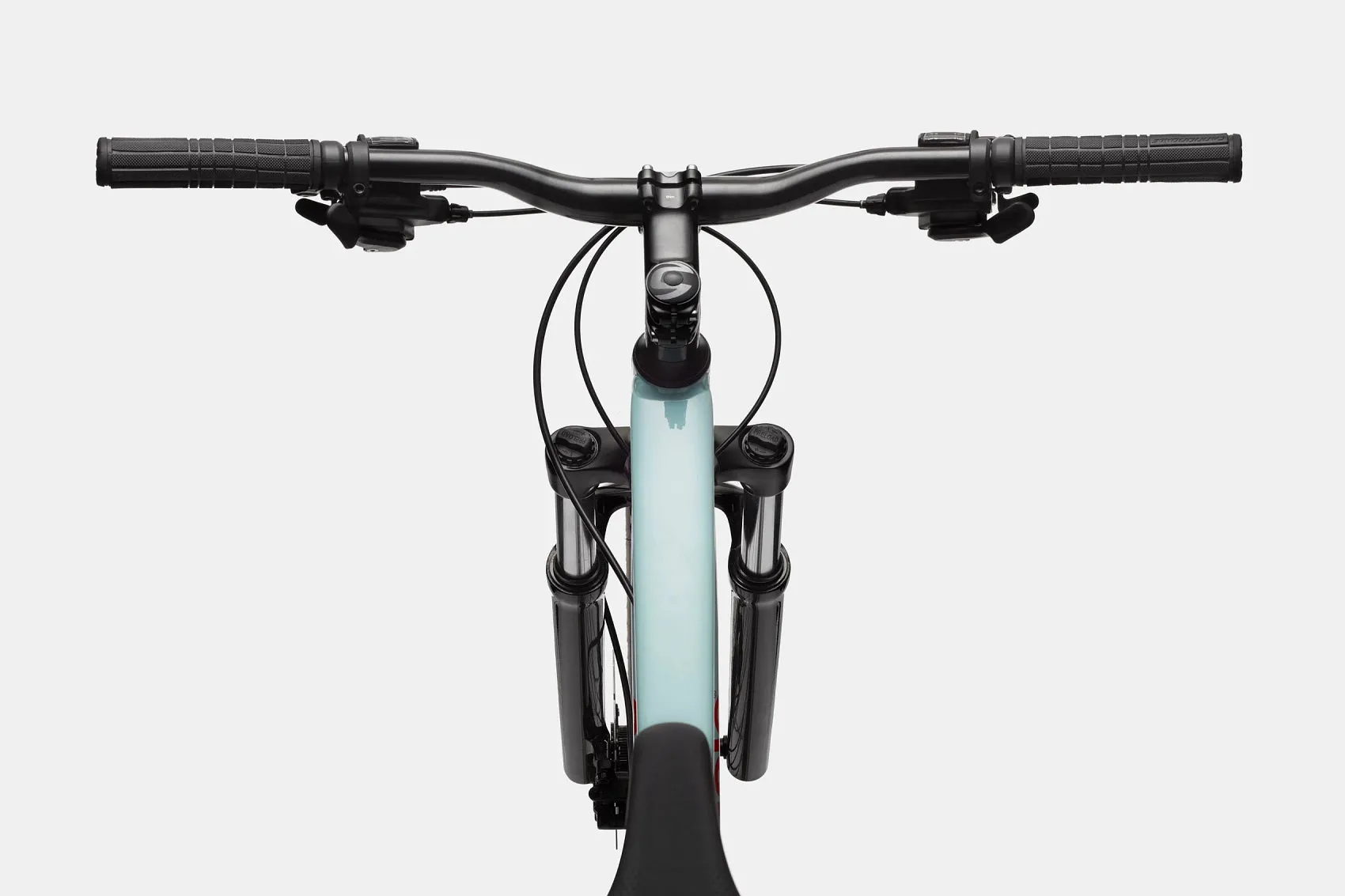

Handlebar
6061 Alloy Riser, 31.8mm, 25mm rise, 700mm
Stem
6061 Alloy, 31.8, 8°
Grips
Cannondale Dual-Density
Saddle
Cannondale Stage 2 Women's
Seatpost
Cannondale 3, 6061 Alloy, 31.6x350mm (XS - SM), 400mm (MD-LG)
