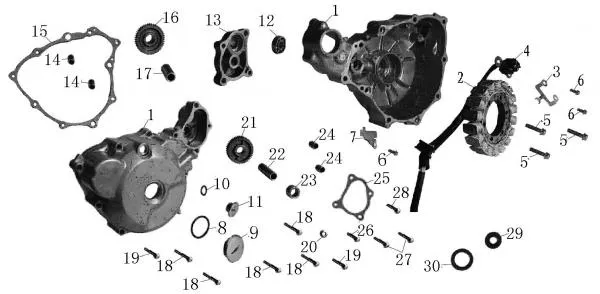

Trail 400 Left Crankcase Assembly
Part Name:
- 1 FRONT COVER
- LEFT CRANKCASE FULL ASSEMBLY
- 2-4 STATOR FULL ASSEMBLY
- MAGNETO
- 5 BOLT M6X32
- 6 BOLT M6X16
- 7 NIP
- PRESS LINE
- 8 INSPECTION HOLE SCREW O-RING
- 9 INSPECTION HOLE SCREW
- 10 INSPECTION HOLE SCREW O-RING
- 11 INSPECTION HOLE SCREW
- 12 BEARING 6000 (10X26X8)
- 13 DUAL GEAR COVER
- 14 DOWEL PIN 10X20
- 15 LEFT CRANKCASE COVER GASKET
- 16 DUAL-GEAR FULL ASSEMBLY
- 17 AXLE
- DUAL-GEAR
- 18 BOLT M6X60
- 19 BOLT M6X50
- 20 NUT M6
- 21 GEAR
- 22 GEAR SHAFT
- 23 BUSH
- GEAR SHAFT
- 24 DOWEL PIN F8X14
- 25 GASKET
- 26 BOLT M6X35
- 27 BOLT M6X65
- 28 BOLT M6X28
- 29 OIL SEAL F25XF35X5
- 30 OIL SEAL F14XF28X7
