Name: FUELTECH FT550 EFI SYSTEM
SKU: 1059804

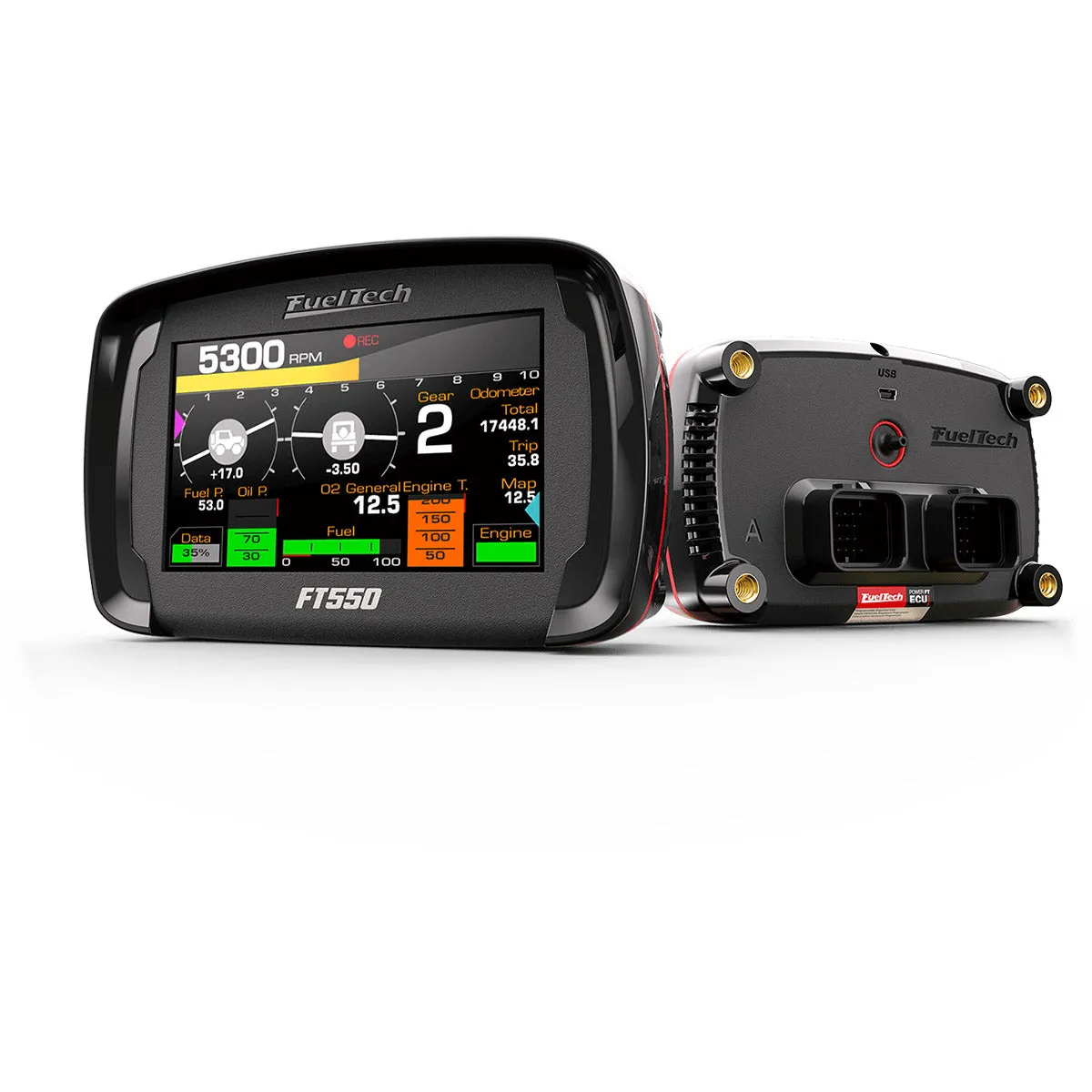

The FuelTech FT550 is the best ECU for projects that require more features, including GearController (power-shifts), built-in accelerometer (G-meter) and gyroscope; In addition to all PowerFT ECU line features such as sequential injection and ignition, O2 closed loop, active traction control, integrated BoostController, internal datalogger, progressive and PRO-Nitrous controls, odometers, electronic throttle control, inclinometer, drag racing features and more.

It also features a sturdy and high-quality waterproof plastic case, automotive connectors with 52 pins, USB communication and two CAN Bus ports, 14 inputs and 24 outputs that are fully configurable.

Features the same FT600 dashboard design, including features like engine start button, new inclinometer gauges and virtual LEDs for arrows, headlights and other functions. The screen allows editing the maps directly on the module, without the need for computer use, seamless integration between the ECU and Vehicle dashboard!

The FT550 ECU use the same FTManager software of the FT600, with all the exact same features and functionalities, including the newest update that allows the user to update their fuel map by applying the O2 closed loop corrections that took place from a log file. The map files of all the PowerFT ECUs are compatible with each other, meaning that you can upgrade ECUs and keep the same tune you had already.

Product intended for off road race-only, ground vehicle use only. FuelTech is not responsible for any misuse of these products. Check with your local authorities regarding highway laws in your area.

SPECIFICATIONS

Otto cycle engine control for 1, 2, 3, 4, 5, 6, 8, 10 and 12 cylinders
Wankel engine control (rotary) for 2, 3 and 4 rotors
Full sequential ignition control, semi-sequential and multipoint control
Ignition control through trigger wheel or distributor
Full sequential ignition or wasted spark
Closed loop injection through oxygen sensor (wide band lambda sensor)1
AMP SUPERSEAL automotive connectors
Electronic throttle body Control (Drive-By-Wire)
Ignition timing and actuator based Idle control (electronic throttle body, step motor, or PWM valve)
Real-time adjustable maps on the screen and on the FTManager software (including internet remote tuning)
Waterproof sealed case made from polished ABS

INPUTS

Differential input for RPM signal
Differential input for cam sync signal (including multi-teeth cam sync triggers)
14 input channels fully customizable – digital and analog (temperature, pressure, speed and position sensors, TPS, external MAP, buttons, keys, etc.)

2 inputs with a high gain preamplifier usually used with a strain gage sensor
Adjustable sensor reading scale

Built-in accelerometer and gyroscope
Internal MAP sensor of 7 bar (1 bar vacuum and 6 bar positive pressure)
1 USB port for computer and FuelTech software connection
2 CAN ports for FuelTech FTCAN 2.0 or FTCAN 1.0

FuelTech equipment: WB-O2 Nano, EGT-8 CAN, FTSPARK and SwitchPanel-8
Third party equipment: Racepak IQ3, VNET, AiM, etc)
OEM CAN partial compatibility with: C6 Corvette, C7 Corvette, 5th gen Camaro, 2009 CTS-V

OUTPUTS

Total of 24 general-purpose outputs: (all of which can be used for general accessories as fuel pump, thermatic fans, valves or injectors for BoostController, solenoids, etc.)

12 open collector outputs: recommended for high impedance injectors (up to 4 injectors per output) – it is possible to set up to 24 outputs using external FuelTech Peak and Hold driver
8 open collector outputs with a 5V current source: recommended for ignition control
8 PUSH-PULL or HALF BRIDGE outputs: suitable for ignition, step motor control, electronic throttle body and to activate loads by 12V instead of ground

DASHBOARD

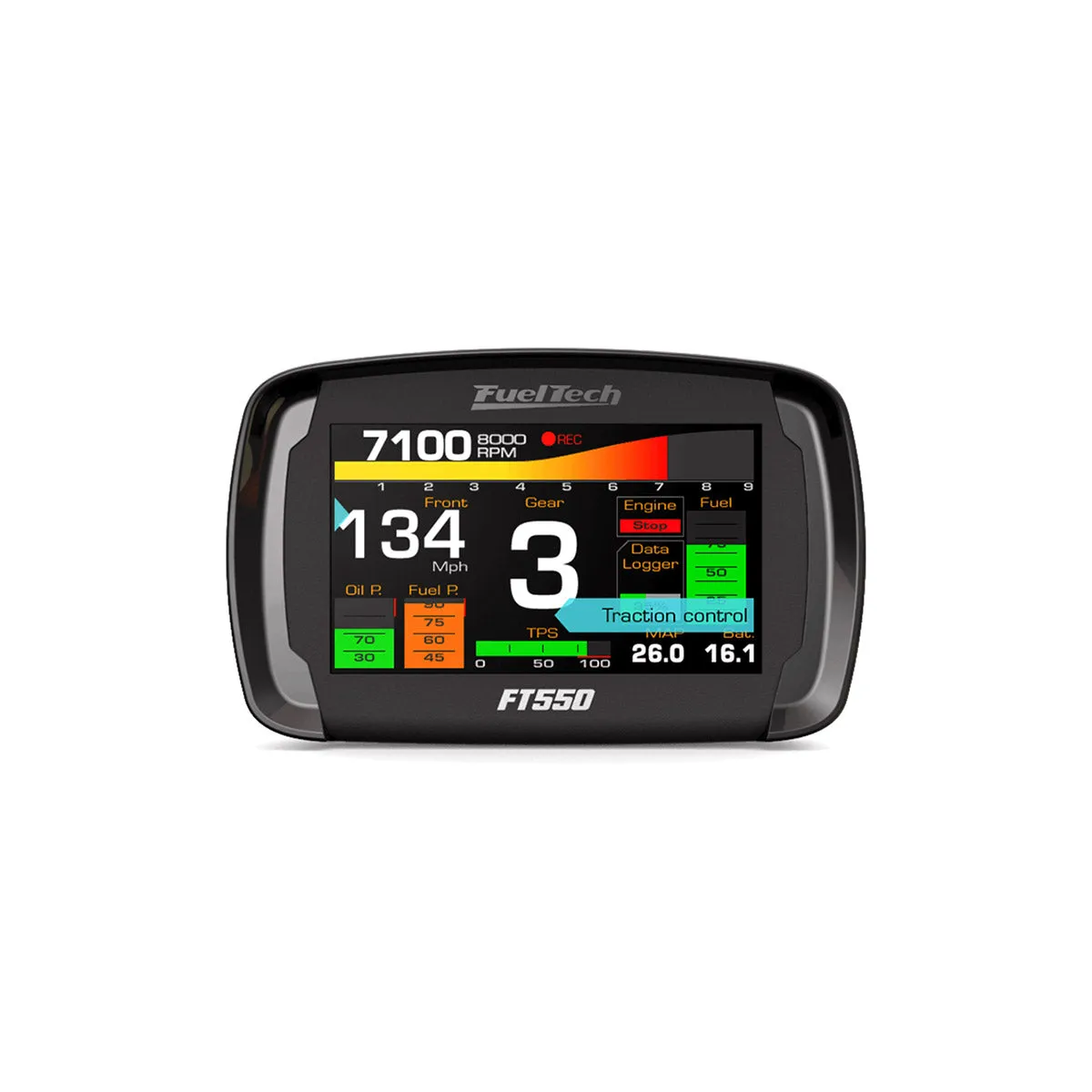

Screen dashboard which displays different sizes and styles to be used with any existing equipment or sensor
Dashboard can have up to 4 screens with navigation through the screen or an external button
4 Virtual LEDs with combined activations for up to 3 conditions
Diagnostic panel with real-time information of all inputs, outputs, CAN, Status Events and engine diagnostics
Customizable splash screen allows the user to select the image shown on the FT550 start up screen

INJECTION CONTROLS

Full sequential injection for up to 20 outputs
Closed loop fuel control through O2 sensor (wide band sensor) 1
2 injection banks (Bank A and bank B)
Primary map though MAP, TPS or RPM
Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
Simplified 2D map with up to 1x32 cells by MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
Injection time resolution of 0,001ms
Acceleration fuel enrichment and decay adjustment
Individual cylinder trim setting by MAP or RPM
Injector compensation through:

Engine temperature
Air temperature
Battery tension (individual per bank)
TPS or MAP

Starting engine map with the engine temperature
Prime pulse table
Post start enrichment
Gear based fuel compensation
Gear shift fuel compensation
Fuel injection angle table
Injectors deadtime compensation by battery voltage

1 An external wide band lambda sensor conditioner is required – FuelTech WB-O2 Nano, Alcohol-O2, WBO2 Datalogger, etc.)

IGNITONS CONTROLS

Sequential ignition for up to 12 cylinders
Main map by MAP, TPS or RPM
Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
Simplified 2D map with up to 1x32 cells per MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
Injection angle resolution of 0,01°
Individual cylinder injection settings
Ignition timing compensation by air temperature
Ignition timing compensation by engine temperature
Gear based timing compensation
Gear shift timing compensation

INTERNAL DATALOGGER

Multiple session recording (files) logs up to 256 channels
Simplified mode with sample rate of 25, 50, 100 or 200Hz
Advanced mode allows individual settings for the sample rate with 1, 5, 25, 50, 100 or 200Hz
Automatic activation by RPM, through the screen or by external button
Data storage for up to 2h50min (24 channels at 25Hz)
FTManager Datalogger Software for viewing and comparing logs

DRAG RACING FEATURES

Burnout mode, 2-step, 3-step (including Roll Start)
2-step activation by speed, boost, MAP or clutch position
Line lock brake output
Brake pressure control by line lock
Ignition timing map for drag Racing features
Time based RPM limiter by timing retard or ignition cut
Time based wheel speed or driveshaft RPM control with timing retard or ignition cut
Time-based ignition timing compensation
Time-based fuel compensation
Pro-Nitrous setting for up to 6 stages, with activation control, fuel enrichment and ignition timing maps
Gear shift output
Time based output
Staging control
Wheelie Control
Time based max throttle position

STREET CAR PACKAGE

Total and trip hour meter
Total and trip odometer
High and low beam
Right and left turn signals
Pit Limit / Speed Limit
START/STOP button

SECONDARY FEATURES

Integrated GearController : ignition cut for clutchless gear shiftings using a strain gauge sensor on the shifter
Integrated BoostController: wastegate valve pressure control
Idle speed control by timing, step motor, PWM valve or electronic throttle body
Deceleration fuel cutoff
Control of up to two thermatic fans activated by engine temperature and by the A/C, one of the outputs can drive a solid state using PWM control for soft starting the fans
Air conditioning control
Fuel pump control – with 6s prime
Variable Valve Timing (VTEC) control
Progressive nitrous control with fuel enrichment and timing retard
Generic duty cycle – PWM control
Boost activated output
RPM activated output
Different options for gear detection: RPM drop, analogic sensor, pulse, speed and gear ratio, by gear shift output or GearController
Start button. Allows to start and shut down the engine via a relay connected to an output switching the starter
Cold start with external reservoir
Differential control for Yamaha YXZ1000 UTV
Active traction control keeps wheel slip on ideal levels for maximum traction, thus adapting the available traction conditions as it seeks to maintain the programmed wheel speed difference by reading traction wheel and reference wheel speed difference
Hi-resolution engine power control method for RPM limiter. Controls timing on each cylinder and considerably reduces the turbo spool time in a transbrake/2-step rev limiter, keeps cylinders and spark plugs in conditions of maximum efficiency (they never get wet because they always fire), allow to lower the RPM limiter for launch or to make more boost at the same RPM and smoothens the 2-step limiter operation for less vibration
Pit Limit / Speed Limit
Generic outputs allow to configure up to 8 outputs by associating an input and setting up the way the output will be activated

DEFAULT SENSORS

Default sensors make the configuration easier:

Oil pressure
Fuel pressure
External MAP sensor (GM 1 bar, GM 1.05 bar, GM 2 bar, GM 3 bar, GM 3.05 bar)
Nitrous bottle pressure
Clutch pressure
Wastegate pressure
Brake pressure
Back pressure
Pan Vacuum
Transmission pressure
Torque converter pressure
Engine coolant pressure
Air temperature
Engine temperature
Exhaust gas temperature (EGT)
Transmission temperature
Intercooler temperature
Tire temperature
Track temperature
Clutch position
Shock position
Wheel speed
Turbocharger speed (up to 2)
Driveshaft RPM
Input shaft RPM
Ride height sensor
Pitch rate sensor
Flex Fuel sensor

PROTECTION AND ALERTS

RPM limiter by fuel or ignition cut
Shift light with sound and dashboard alert and/or external shift light
Configurable safe mode options (RPM limit or engine shutoff):

High or low exhaust gas temperature (EGT), O2 closed loop limit, over boost, over rev, engine temperature, duty cycle, oil pressure, fuel pressure and differential fuel pressure

SOFTWARE

FTManager has several tools and features:

Real-time map edition
Edition of the indexes of map tables
Save and read saved maps on the PC
Open maps from log files
Display fuel maps in ms, %VE, � and lb/h
Easy edition of time-based controls, organizing all in one screen and making it possible to use a log file as reference
ProNitrous edition aided by the stage chart
Allows converting maps of previous ECUs (FT200, FT250, FT300, FT350 and FT400)
Allows importing of some specific tables from other maps
ECU software upgrades
Splash screen customization
Engine operation in real time analysis through gauges and graphics with full screen option
Check alert and status messages
Test time-based features
Edit channels of the internal datalogger and their individual logging rates
Switch between basic (2D) or advanced (3D) maps
Edit the odometer and hourmeter
Reset the ECU to factory default
Recalibrate the touchscreen
View all devices connected to the CAN network

Receive warnings about new updates
Internet Remote Tuning allows connecting to another FTManager over the internet, for giving or receiving remote support

FTDatalogger

Download and analyze log files from PowerFT ECUs
Log files comparison
Mathematical channels
Data export to CSV file
Overlay functions easily show which cell the engine was running on for better data analysis:

Fuel tables overlay
Ignition tables overlay
Closed loop corrections: allows the user to see and apply all the corrections applied by the O2 closed loop on a log file

Select between light or dark background for better data visualization
Select if you want to show channels names and values on the chart or only in the preview panel
Full timeline visualization
Set log zero time (tell the log time where the car launched)
Erase your ECU datalogger memory
Trim feature for log files – make then smaller and have only the information you need

FuelTech Datalog App:

Open your log files on your phone`s screen (up to 4 channels at the same time) - (Android and iOS)

GENERAL FEATURES

Display brightness adjustment
LED lights brightness adjustment
Night and day mode selection by external switch and through the menu
Buzzer intensity adjustment for the interface and sound alerts
Memory for saving up to 5 different maps (possibility of map selection by external button)
ECU and Map protection password, with individual full ECU or map password only, including map lock-up function that allows the current map to be saved and run exclusively on the actual ECU (ensured by serial code). Maintenance password protects the edition of the total hour meter and total odometer
• PC communication through mini USB cable
• Operation temperature: from -4 F to 158 F
• Maximum power supply voltage: 20V

DIMENSIONS

FT550 EFI: 5.75 x 3.62 x 2.13 in
FT550 packaging: 12.2 x 8.86 x 3.33 in
Shipping box: 13 x 9.45 x 5.9 in

WEIGHT

FT550 EFI: 11 oz
FT550 EFI packaging without harness: 46 oz
FT550 EFI packaging with a 10 ft harness: 87.5 oz
FT550 10 ft harness: 41.5 oz

CONTENTS OF PACKAGING

• 1 FT550 EFI
• 1 10ft electrical harness (A B) for installation (optional)
• 1 operation and installation guide
• 1 mounting system
• 1 protection cover for the FT550 ECU
• 1 FuelTech badge
• 1 USB flash drive (containing the FTManager softwares and guides)
• 1 mini USB cable
• 1 promotional kit
