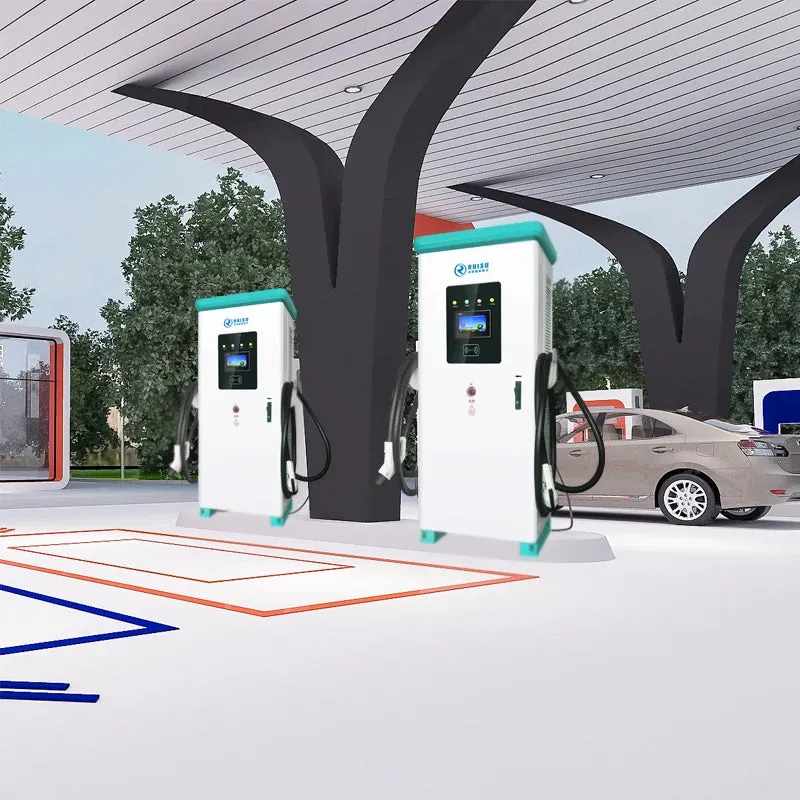

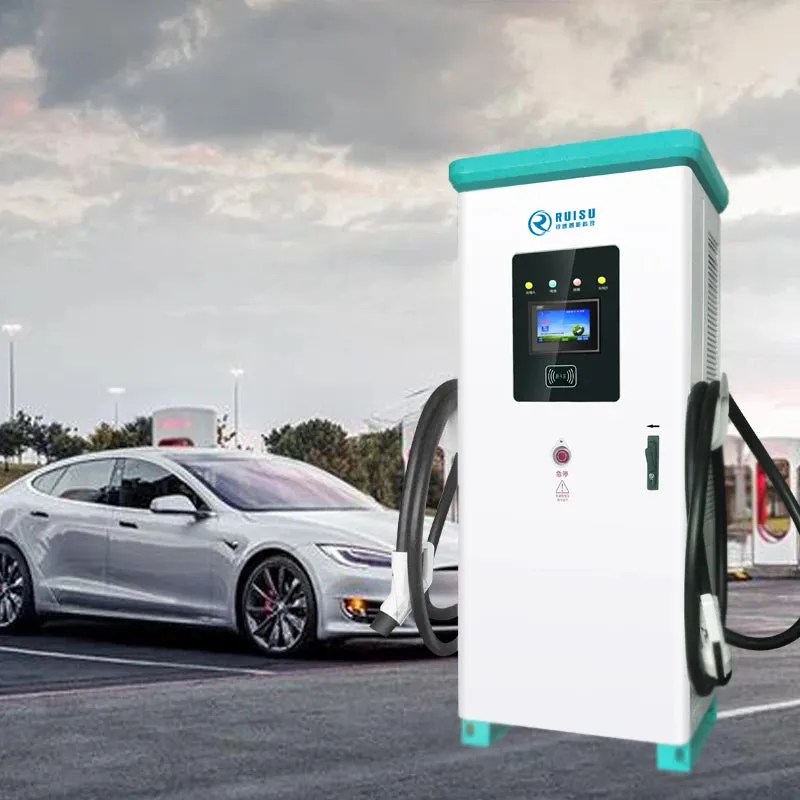

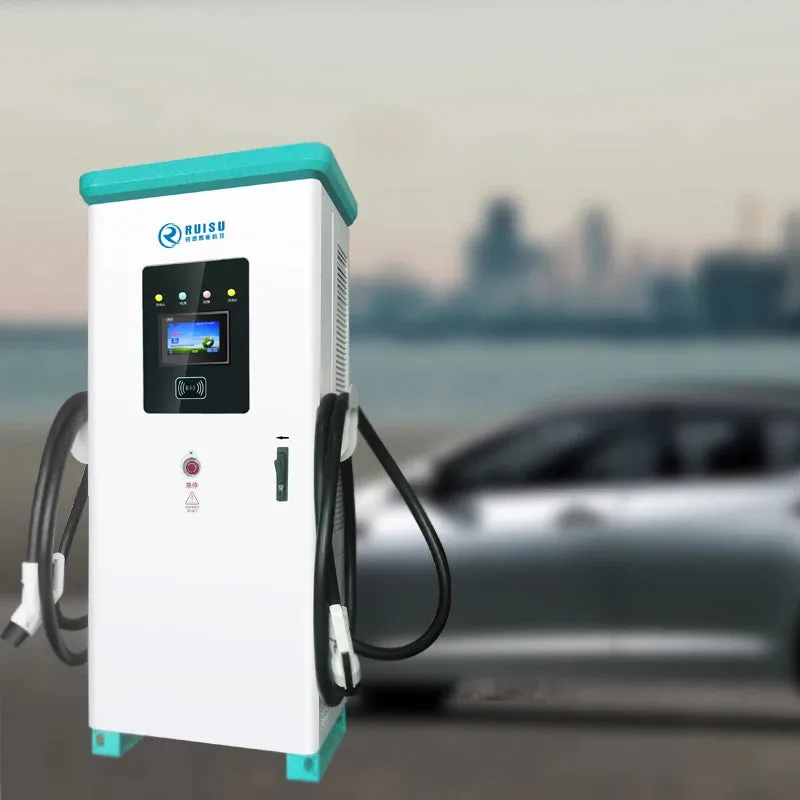

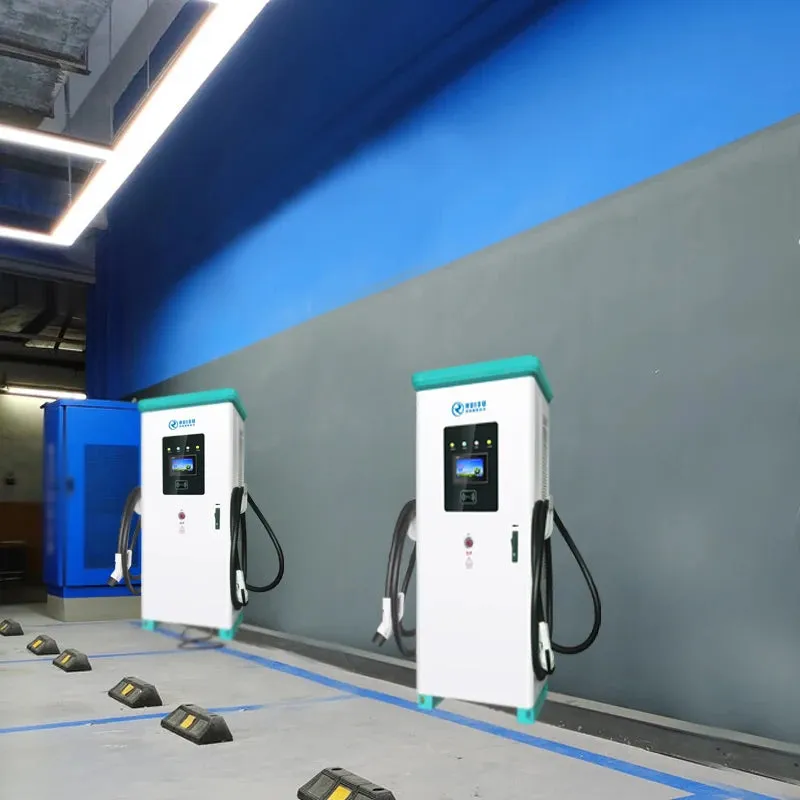

Outdoor floor-mounted DC charging stations ev charger car GB/T 180KW ev charging station with 5 meter cable:
Dimension (H*W*D)(mm): 830*620*1867
Input Frequency (Hz): 50 /60 Hz
Output Voltage Range (V): 200-1000VDC
Max. Output Current (a): 0-250A
Cable Length: Charger Gun 5m (CCS2), Customized Acceptable
Advantages:
1. Ultra-wide charging range: 200-1000V, BMS power supply: 12/24V;
2. Support charging card, APR WeChat, Alipay and other payment methods;
3. Adopt efficient modules, with high power factor and an efficiency of more than 96%;
4. 4.3" color touch screen, with friendly visual interface to present various information;
5. Multiple protection functions: protection against lightning, overload, short circuit, over temperature, current leakage, emergency stop, etc.
6. Charging options: settings for charging time, SOC level, fee, appointment, etc.
7. Sheet metal shell, with a protection level of outdoor IP54.
Technical Parameters:
| Product Type | 180KW DC Charger |
| Product Model | RSDC1000-160KW |
| Dimension (H*W*D)(mm) | 830*920*1867 |
| Display Mode | LED Display |
| Input Voltage | 380VAC, 3 phase N PE |
| Output Power (KW) | 180 |
| Input Frequency (HZ) | 45~55Hz |
| Max. Output Current (A) | 250 |
| Length of Charging Gun (m) | 5 |
| Electric Leakage Protection (mA) | 30 |
| Human-machine Display | 4.3" Color Screen |
| Charging Operation | Swiping card / scanning code |
| Measuring and Accounting | Time-sharing accounting |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Natural cooling |
| Protection Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc |
| Charging Selection | Self-provided, timing, quantitation, fixed fee, appointment etc. |
| Payment Method | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Optional | Install the bracket when landing hanger |
| Product Introduction | 1.180KW intelligent DC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions; |
After-sale Service:
1. Two years warranty for the whole body.
2. If any parts break during the period, it's free replacement.
3. Professional technical engineer support for installation&operation and communication connection assistance between your app and our OCPP platform.
Additional Options:
1. Customized cable length.
2. Customized charger connector.
3. Customized Box color and customized logo.
